DiaTiger® Diamond Coated End Mills & Routers
Tool Testing Results
Get Quote

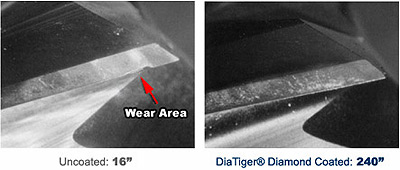

Milling Wood Composite with Hard Laminate Surface

Cutting Parameters
SPEED
18,000 RPM
FEED
150 IPM



Milling Glass Fiber Reinforced Plastic
Tool:
1/8" Carbide End Mill
Cutting Parameters
SPEED
 25,000 RPM
FEED
.110"/Rev.



Milling EK85 Graphite EDM Electrode
Tool:
1/2" End Mill, 2 Flutes
Cutting Parameters
SFM
  5,900
FEED
.002"/Rev
AXIAL DOC
.118"
RADIAL DOC
.475"





Milling V1466 Graphite
Tool:
Carbide End Mill
Cutting Parameters
SFM
  2,000
FEED
.002"/Rev
AXIAL DOC
.200"
RADIAL DOC
.040"





Milling Copper EDM Electrodes
Tool:
End Mill
Cutting Parameters
SPEED
 20,000 RPM
FEED
2,600
AXIAL DOC
.200"
RADIAL DOC
.040"





Milling Carbon Fiber Reinforced Plastic;
(50% Carbon Fiber)
Tool:
5/16" Router
Cutting Parameters
SFM
2,600
AXIAL DOC
.120"
RADIAL DOC
.080"
